Characteristics:

Optimal relation between size of the Rotary Table and max. work piece load

• Motor installation at the side, top or behind
• Further design possibilities on request

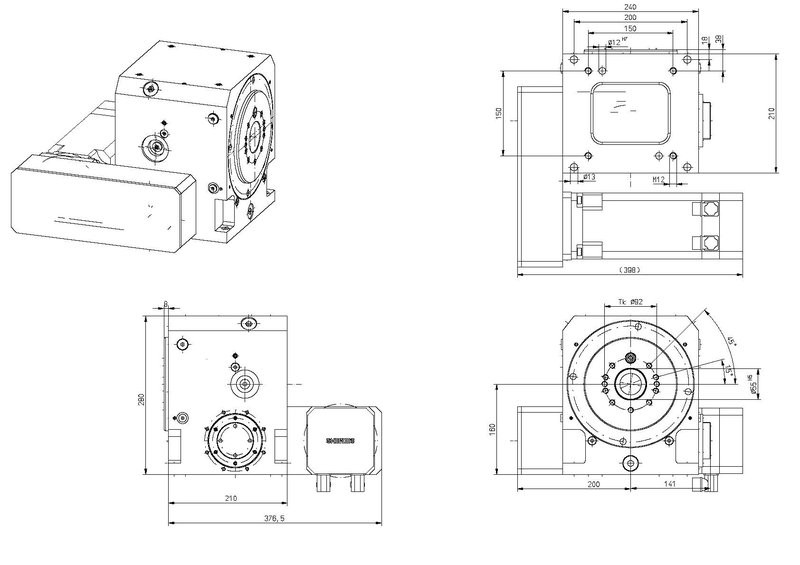

The drawing shows an NC Rotary Table TG 160 with servo motor installation behind the basic device. This compact design offers a various use of the machining space in the machine.
